Color Change External Wall Washer Lights

Color Change External Wall Washer Lights

Product Details:

Place of Origin: China
Brand Name: Intuiit
Certification: CE,RoSH
Model Number: IXQ17D

Payment & Shipping Terms:

Minimum Order Quantity: 100ocs
Packaging Details: Carton
Delivery Time: 25-35days
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/Months
Get Best Price Contact Now

Detail Information

Type: Led Wall Washer Light Light Source: LED
Lamp Power: 60W Input Voltage: DC24V
IP Rated: IP65 Warranty: 2 Years
High Light:

dc 24v dmx led wall washer


60w exterior wall washer lights


color change led wall washer lights

Product Description

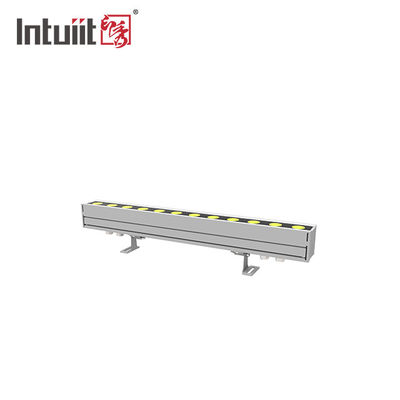

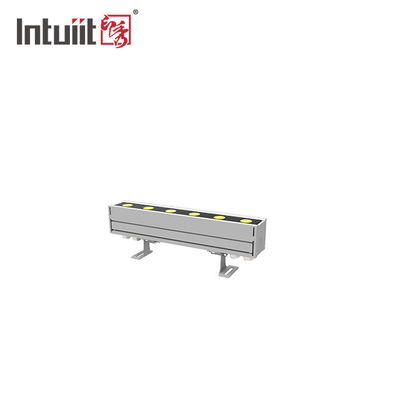

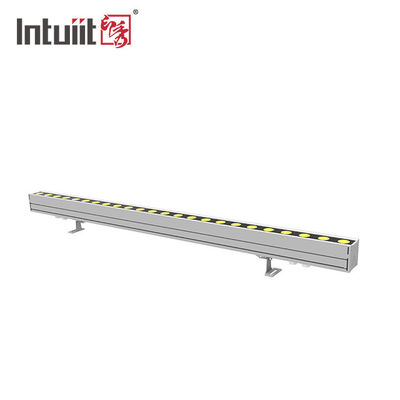

Aluminum waterproof dmx exterior color change dc24V rgbw 4 in 1 led wall washer light


IXQ17D is a powerful waterproof IP65 LED wall washer light, suitable for operation in all-weather conditions. It is small in size, light in weight, able to achieve seamless stitching. It supports DMX512 protocol and RDM function

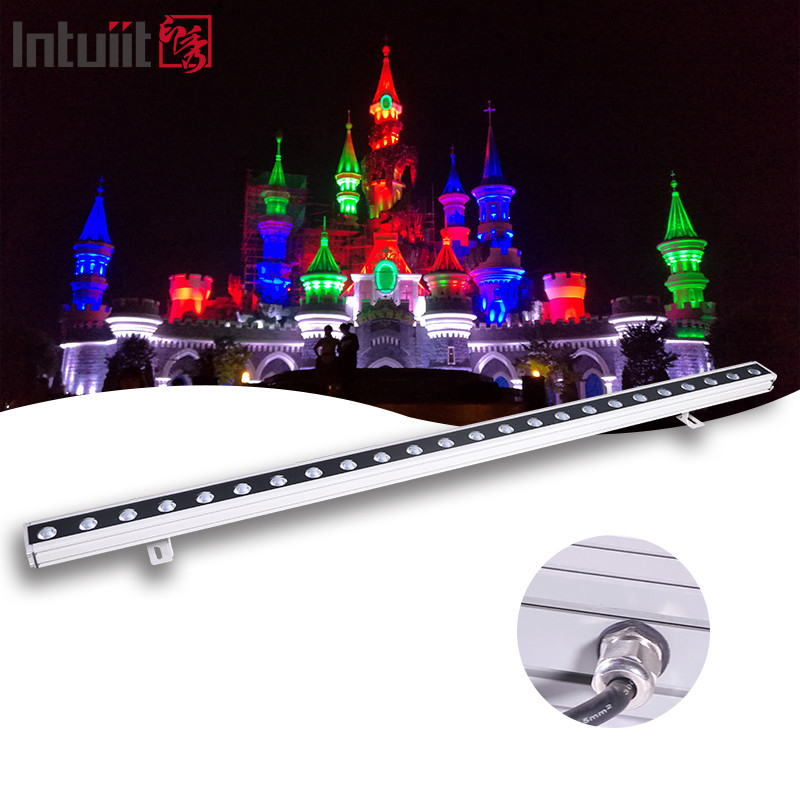

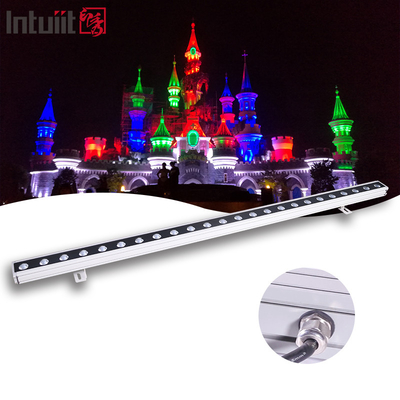

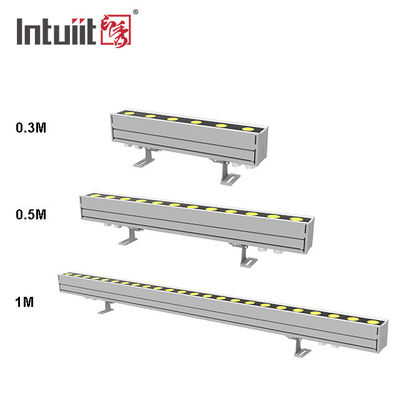

We have the length of 1m, 0.5m, 0.3m optional for project use.With flexible section control function, it is possible to realize colorful pixel effect for the hotels, shopping malls, buildings, square landscapes, municipals, bridges, and other outdoor landscape lighting projects to provide new lighting solutions.




Item Number IXQ17D22(1M)
LED Qty 24pcs(1M) / 12pcs(0.5M) / 6pcs(0.3M) 16pcs(1M)
Beam Angle 20°/30°/40°/20*40°Optional
Spot Angle 40°/50°/75°/45*75°Optional
Lumen 3750lm / 1860lm / 815lm 1395lm / 865lm /450lm 1835lm / 1085lm / 550lm 2036lm
CRI Ra≥70 / / /
Color Tempreture 2700∽6000K Optional RGB RGBW(W:3000 / 4000 / 6000K Optional)
Product Measurement 1000*52*101MM(1M) / 510*52*101MM(0.5M) / 300*52*101MM(0.3M)
N.W. 3kg(1M) / 1.7kg(0.5M) / 1.2kg(0.3M)
Input Voltage Range DC24V
Watts 60W(1M) / 30W(0.5M) / 18W(0.3M)
Power Factor >0.9
Housing Material Tensile Aluminum + die-cast aluminium
Color Matt black / Grey
Cooling Natural convection cooling
Control Protocol ON/OFF DMX512 DMX512 DMX512 DMX512-RDM
Segmented Control / 4Section(1M)/2 Section(0.5M)/1Section(0.3M) 4 Section(1M)
Channel / 4 / 6 / 7 / 16 CH
Power /Installation Independent
Conection 3pin rubber cable:input/output black rubber cable 5 Pin In & Out
Power Linking 14pcs(1m) / 28pcs(0.5m) / 56pcs(0.3m)
DMX Linking / 32pcs(1M) / 64pcs(0.5M) / 128pcs(0.3M)
Certification CE,RoHS
IP Grade IP65

Color Change External Wall Washer Lights 0


Color Change External Wall Washer Lights 1





Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days

Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.

Fourthly:We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.

Q8: How to deal with the fault?
A: Firstly: Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly: during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.

Q9: Do you work a project?

A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
