China LED Stage Light manufacturer

Waterproof LED Stage Bar

Product Details:
Place of Origin: China
Brand Name: Intuiit
Certification: CE&RoHS
Model Number: CT-001P-1M
Payment & Shipping Terms:
Minimum Order Quantity: MOQ 50Pcs
Packaging Details: Inner box+ Master Carton
Delivery Time: 25-35days for mass order
Payment Terms: T/T IN ADVANCE (30% Deposit, 70% blance payment before delivery)
Supply Ability: 10000Pcs/Month

Detail Information

Type: LED Wall Wash Bar Light Source: RGBW Quad LED
Max. Power: 200W Input Voltage: AC100-240V,50-60Hz
IP Grade: IP65 Warranty: 1 Year
High Light:

ip65 led stage bar light

,

200w stage light bar

Product Description

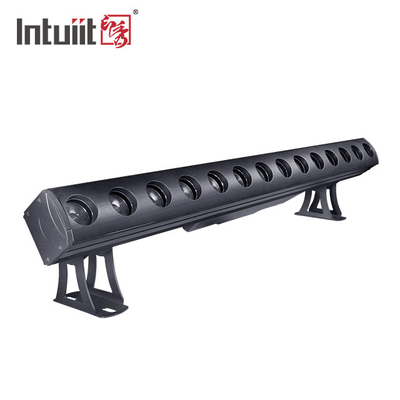

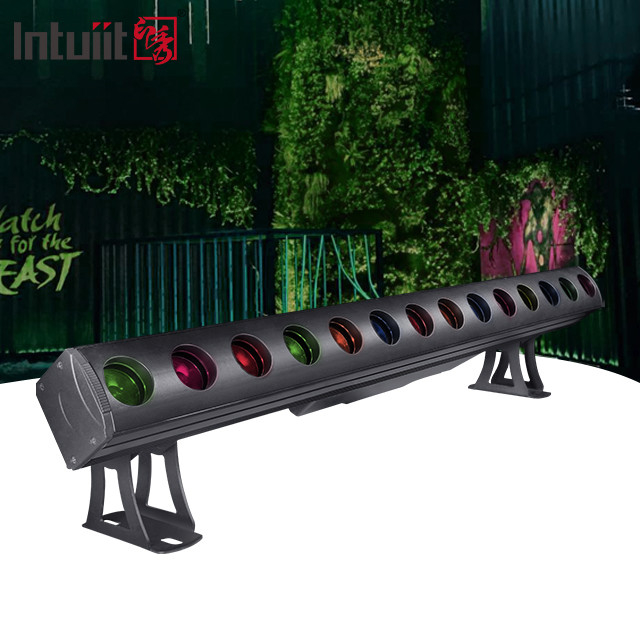

Professional Stage LED Light Bar 14Pcs*15W RGBW 4-in-1 LED waterproof stage led bar





CT-001P-1M is IP65 rated Stage LED Light Bar, die-casting Magnesium alloy+ tensil Aluminum private tooling housing, very nice design, used 14cs*15W RGBW 4-in-1 LEDs,Pixel control, narrow beam angle 4.5 degree, and easy to change the beam angles by diffusion filter lens' kit, like 20Degree, 40Degree and 20*40Degree etc, Max. power is 200W, DMX & RDM function stage led light bar, IP rated 5Pin(3pin) seetronic DMX and PowerCon in/Out sockets, OLED Display with 4 touch button control panel. This stage led light bar with excellent color mixing, very smooth 16bit dimming. Very suitable for all kinds of stage, theater, church etc.



Technical Data

Item No. CT-001P-1M
Light Source 14Pcs*15W 4-in-1 RGBW LED
Max. Power 200W
Work voltage AC100-240V, 50-60Hz
Beam angle 4.5Degree,8Degree ( 20D, 40D, 20*40D by diffusion filter)
Luminous flux 3283lm
Control Protocol DMX512,RDM
DMX Channels 4,6,8,56CH
IP Grade IP65
Product's dimension 1022*150*239mm
Net weight 10.2KG





Light Distribution Data

Waterproof LED Stage Bar 0





Product's Dimension

Waterproof LED Stage Bar 1





Installation Diagram

Waterproof LED Stage Bar 2





FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable



Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days



Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.

Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.

Q9: Do you work a project?

A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
