Outdoor Rgb Led Wall Washer Light Dc24v 1m 0.5m 0.3m Length Dmx 24watt 12watt 6watt
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE |
| Model Number: | Guangjiqiao Lighting |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Packaging Details: | Cartons |
| Delivery Time: | 15-30days |
| Supply Ability: | 20000pcs/month |
|
Detail Information |
|||
| Power: | 9W、18W、36W | Beam Angle: | 20 °/30 °/40 °/20 °x40 ° Optional |
|---|---|---|---|
| Input Voltage: | AC100-240V,50-60Hz | Cooling: | Natural Convection Cooling |
| Control Protocol: | DMX512/RDM | Permitted Ambient Temperature: | - 20 ～ +45℃ |
| IP Grade: | IP65 | Color Tempreture: | 1800K∽6000K Optional |
| CRI: | Ra≥70 | Lumen: | 2260lm/1116lm/710lm |
| High Light: | Rgb Led Wall Washer Light,0.3m Length Led Wall Washer Light |
||
Product Description
Outdoor Dc24v 1m/0.5m/0.3m Length Dmx 24w/12w/6w Rgb Led Wall Washer Light
Guangjiqiao Lighting Project Professional Led Wall Washer For Theme Park, Theme Town,High Buildings
Guangjiqiao Lighting Project 0.3m 0.5m 1m Outdoor Linear Washer Light 24w Ip67 Dmx512 Architectural Spotlight

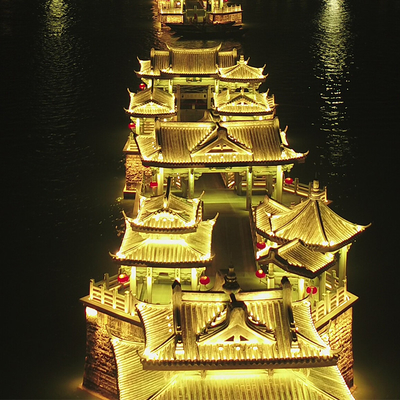

The night scene lights on both sides of the River on the Chaozhou are officially turned on. The most exciting is the light show of the Guangji Bridge in Chaozhou. It shows the modern rhythm and style of the ancient bridge. It presents the symphony of music, the symphony of the body, and the symphony of appreciation. Through a large number of natural light colors and wonderful Chinese music, it shows the modern charm of changes, dreams, science fiction, and magic on the millennium ancient bridge. You can see the mountains and the water, and the scenery on both sides of the river in front of you is both in the painting and in the poem. Extreme enjoyment and prosperity of the prosperous body and mind.
Guangjiqiao lighting Project For Professional Led Wall Washer,Led floodlight,Led Stage Light,Led Par
From planning to design, from development to construction, from programming to maintenance, it was built by Dasen lighting team and was located in Huashan Town, a famous scenic spot in Huadu for a long time.
Use product
9W/18W/36W Professional Led Wall Washer
A total of 1000 units were used
Specification:
| Item Number | IXQ18A01(1M) IXQ18A06(0.5M) IXQ18A07(0.3M) |
IXQ18A03(1M) IXQ18A08(0.5M) IXQ18A09(0.3M) |
IXQ18A10(1M) IXQ18A11(0.5M) IXQ18A12(0.3M) |
IXQ18A13(1M) IXQ18A14(0.5M) IXQ18A15(0.3M) |
IXQ18A17(1M) |
| LED Qty | 24pcs(1M) / 12pcs(0.5M) / 6pcs(0.3M) | 16pcs(1M) / 8pcs(0.5M) / 4pcs(0.3M) | 16pcs(1M) | ||
| Beam Angle | 20°/30°/40°/20*40°/60°Optional | ||||
| Spot Angle | 40°/50°/75°/45*75°/100°Optional | ||||
| Lumen | 2350lm / 1160lm / 570lm | 960lm / 575lm /320lm | 1040lm / 610lm / 350lm | 1040lm | |
| CRI | Ra≥70 | / | / | / | |
| Color Tempreture | 2700∽6000K Optional | RGB | RGBW(W:3000 / 4000 / 6000K Optional) | ||
| Product Measurement | 1000*35*63MM(1M) / 510*35*63MM(0.5M) / 300*52*101MM(0.3M) | ||||
| N.W. | 1.5kg(1M) / 0.8kg(0.5M) /0.5kg(0.3M) | ||||
| Input Voltage Range | DC24V | ||||
| Watts | 24W(1M) / 12W(0.5M) / 6W(0.3M) | ||||
| Power Factor | ＞0.9 | ||||
| Housing Material | Tensile Aluminum + die-cast aluminium | ||||
| Color | Matt black / Grey | ||||
| Cooling | Natural convection cooling | ||||
| Control Protocol | ON/OFF | DMX512 | DMX512 | DMX512 | DMX512-RDM |
| Segmented Control | / | 4Section(1M)/2 Section(0.5M)/1Section(0.3M) | 4 Section(1M) | ||
| Channel | / | 4 / 6 / 7 / 16 CH | |||
| Power /Installation | Independent | ||||
| Conection | 3pin rubber cable:input/output | black rubber cable 5 Pin In & Out | |||
| Power Linking | 6cs(1m) / 12pcs(0.5m) /24pcs(0.3m) | ||||
| DMX Linking | / | 32pcs(1M) / 64pcs(0.5M) / 128pcs(0.3M) | |||
| Certification | CE,RoHS | ||||
| IP Grade | IP65 | ||||
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
