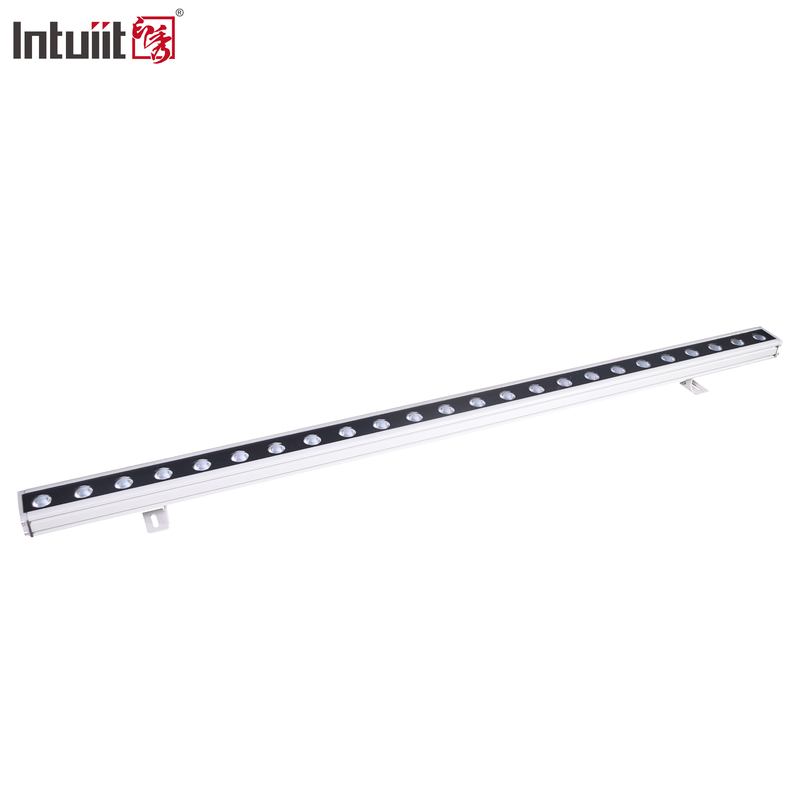

Waterproof Linear LED Wall Washer Light
Product Details:
| Place of Origin: | China |
| Brand Name: | Intuiit |
| Certification: | CE |
| Model Number: | IXQ18B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 15-25 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000pcs per month |
|
Detail Information |
|||
| Type: | LED Architectural Lighting | Input Voltage: | DC24V |
|---|---|---|---|
| Lamp Power: | 48W | IP Rated: | IP 65 |
| Light Source: | LED | Warranty: | 2 Years |
| High Light: | ip65 linear led light bar,architectural lighting linear led wall washer |
||
Product Description
LED architectural lighting dmx rgbw 1m 0.5m 0.3m led wall washer linear light for facade building
IXQ18B is a good color mixing waterproof IP65 led wall washer linear light, 1800K-6500k,RGB, RGBW led optional, suitable for operation in all-weather conditions. It is small in size, light in weight, able to achieve seamless stitching. It supports DMX512 protocol and RDM function
It has the length of 1m, 0.5m, 0.3m optional for facade building.With flexible section control function, it is possible to realize colorful pixel effect for the hotels, shopping malls, buildings, square landscapes, municipals, bridges, and other outdoor architetural lighting projects to provide new lighting solutions.
Specification:
| Item Number | IXQ18B01(1M) IXQ18B09(0.5M) IXQ18B10(0.3M) |
IXQ18B03(1M) IXQ18B11(0.5M) IXQ18B12(0.3M) |
IXQ18B05(1M) IXQ18B13(0.5M) IXQ18B14(0.3M) |
IXQ18B07(1M) IXQ18B15(0.5M) IXQ18B16(0.3M) |
IXQ18B17(1M) |
| LED Qty | 24pcs(1M) / 12pcs(0.5M) / 6pcs(0.3M) | 16pcs(1M) / 8pcs(0.5M) / 4pcs(0.3M) | 16pcs(1M) | ||
| Beam Angle | 20°/30°/40°/20*40°/60°Optional | ||||
| Spot Angle | 40°/50°/75°/45*75°/100°Optional | ||||
| Lumen | 3750lm / 1860lm / 815lm | 1395lm / 865lm /450lm | 1835lm / 1085lm / 550lm | 1652lm | |
| CRI | Ra≥70 | / | / | / | |
| Color Tempreture | 2700∽6000K Optional | RGB | RGBW(W:3000 / 4000 / 6000K Optional) | ||
| Product Measurement | 1000*52*80MM(1M) / 510*52*80MM(0.5M) / 300*52*80MM(0.3M) | ||||
| N.W. | 2.5kg(1M) / 1.6kg(0.5M) /1.2kg(0.3M) | ||||
| Input Voltage Range | DC24V | ||||
| Watts | 48W(1M) / 24W(0.5M) / 12W(0.3M) | ||||
| Power Factor | ＞0.9 | ||||
| Housing Material | Tensile Aluminum + die-cast aluminium | ||||
| Color | Matt black / Grey | ||||
| Cooling | Natural convection cooling | ||||
| Control Protocol | ON/OFF | DMX512 | DMX512 | DMX512 | DMX512-RDM |
| Segmented Control | / | 4Section(1M)/2 Section(0.5M)/1Section(0.3M) | 4 Section(1M) | ||
| Channel | / | 4 / 6 / 7 / 16 CH | |||
| Power /Installation | Independent | ||||
| Conection | 3pin rubber cable:input/output | black rubber cable 5 Pin In & Out | |||
| Power Linking | 3cs(1m) / 6pcs(0.5m) /12pcs(0.3m) | ||||
| DMX Linking | / | 32pcs(1M) / 64pcs(0.5M) / 128pcs(0.3M) | |||
| Certification | CE,RoHS | ||||
| IP Grade | IP65 | ||||
Product size
Product opic
Product installation
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the fault?
A: Firstly: Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly: during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
