LCD Display 8 Out Ports DMX Control System

LCD Display 8 Out Ports DMX Control System

Product Details:

Place of Origin: China
Brand Name: Intuiit
Certification: CE
Model Number: KZ-002-A

Payment & Shipping Terms:

Minimum Order Quantity: 10
Packaging Details: Carton
Delivery Time: 20-30days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs/month
Get Best Price Contact Now

Detail Information

Type: DMX512 Controller Control Protocol: Artnet/DMX
DMX Cable: 2 Arnet Port With 3 Pin ,8 DMX Port Housing Material: Tensile Aluminum + Iron Plate
N.W: 1kg IP Rate: IP20
High Light:

8 out ports dmx512 controller

,

lcd display dmx512 led controller

,

ip20 dmx led controller

Product Description

Intuiit LCD display 8 DMX512 port extents controller for stage, landscape lighting





KZ-002A is a DMX signal converter based on data communication of network based on art-net protocol, which can receive network DMX data.

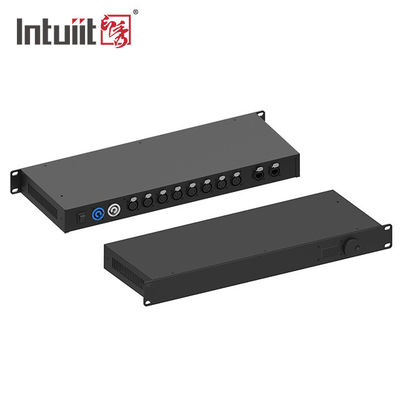

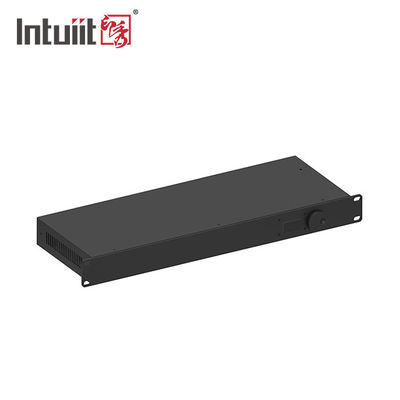

KZ-002A is designed as a standard 1U cabinet structure for easy installation in the standard control cabinet. With LCD display, the setting operation is convenient and intuitive. KZ-002A provides 8 standard DMX512 data output ports and 8*512 data output ports. Different network segments can be set up to avoid the interference of multiple sets of art-net data in the same network.



KZ-002A is compatible with the lighting software with the Art-net protocol. The output can control the stage lighting and LED lighting at the same time.





1. Specification & main function



ArtNet Convertor 8 Outputs
Technical data
Item No. KZ-002-A
Work Voltage AC 100-240V, 50-60Hz
Max. Power 7.5W
Control Protocol DMX 512 / Artnet / RDM / sCAN
Dvice Linking Power in / out, Artnet in / out

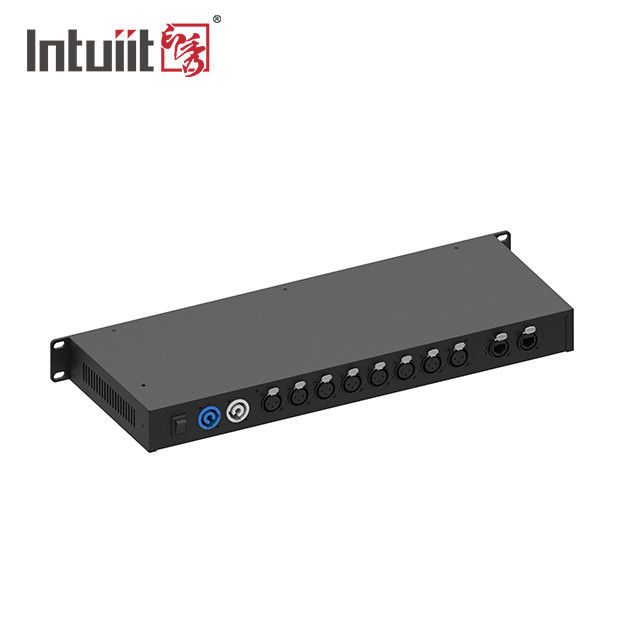

DMX in & Outputs 8 XLR 3-pin / 5pin female
Standard size 19" / 1 U, 483x169x49mm
Net Weight 2 Kg
IP Rate IP20





Main Functions
♦ Bidirectional ArtNet Convertor
♦ Supports 2 Inputs and 8 Outputs
♦ Work Mode switch function: 1-in-8, or 2-in-4
♦ Configure via integrated display
♦ Adjustable DMX repetition rate (10-40 Hz)
♦ 4096 Channels / 8 DMX universes
♦ Convert either Art-Net to DMX or DMX to Art-Net
♦ LEDs indicator to show work status
♦ Support protocols: DMX, RDM, Art-Net, sACN



LCD Display 8 Out Ports DMX Control System 0





2. Application:

LED Indoor lighting stage landscape 3 in 1 RGB DMX Control IR control LED magic par



3. FAQ



Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days

Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.

Fourthly:We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.

Q8: How to deal with the fault?
A: Firstly: Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly: during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.

Q9: Do you work a project?

A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
